Longcross Court | Technical Drawings

Translating Interior Concepts into Technical Design Documentation

Challenge

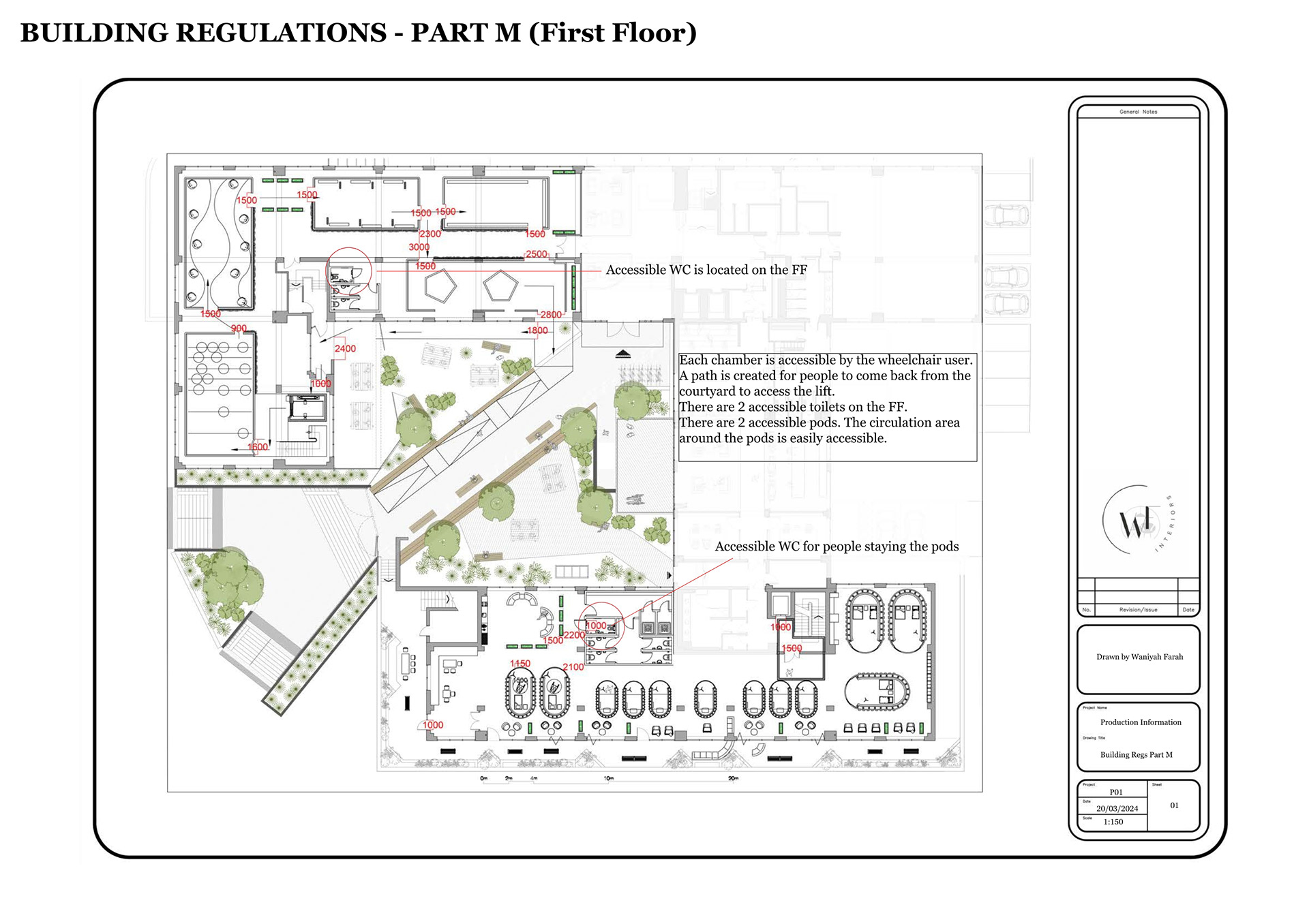

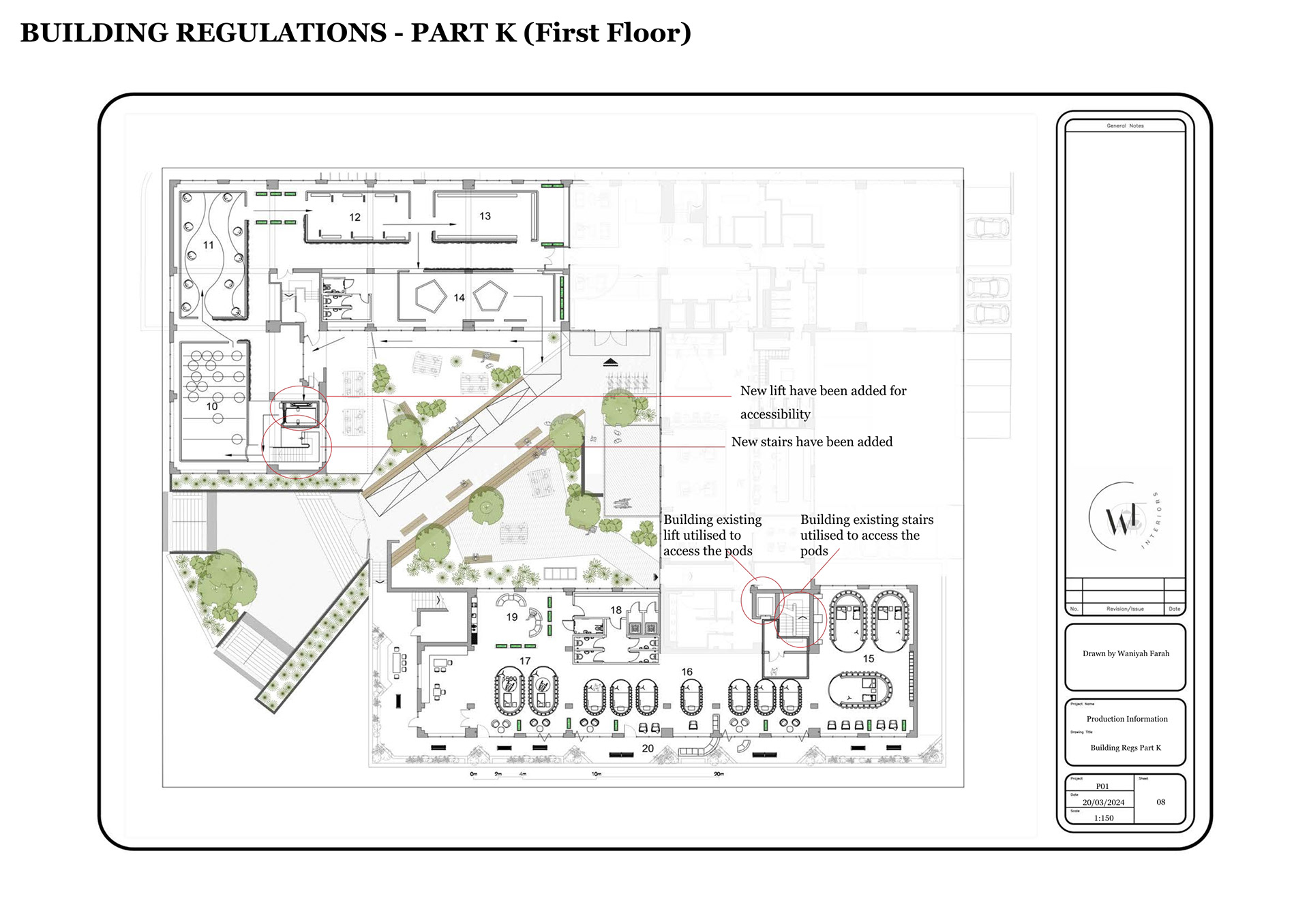

The brief was to develop a comprehensive technical drawing package for the Longcross Court interior scheme, translating the design concept into detailed documentation while considering building regulations, accessibility and material specifications.

Goal

To communicate design intent through accurate technical drawings and specifications.

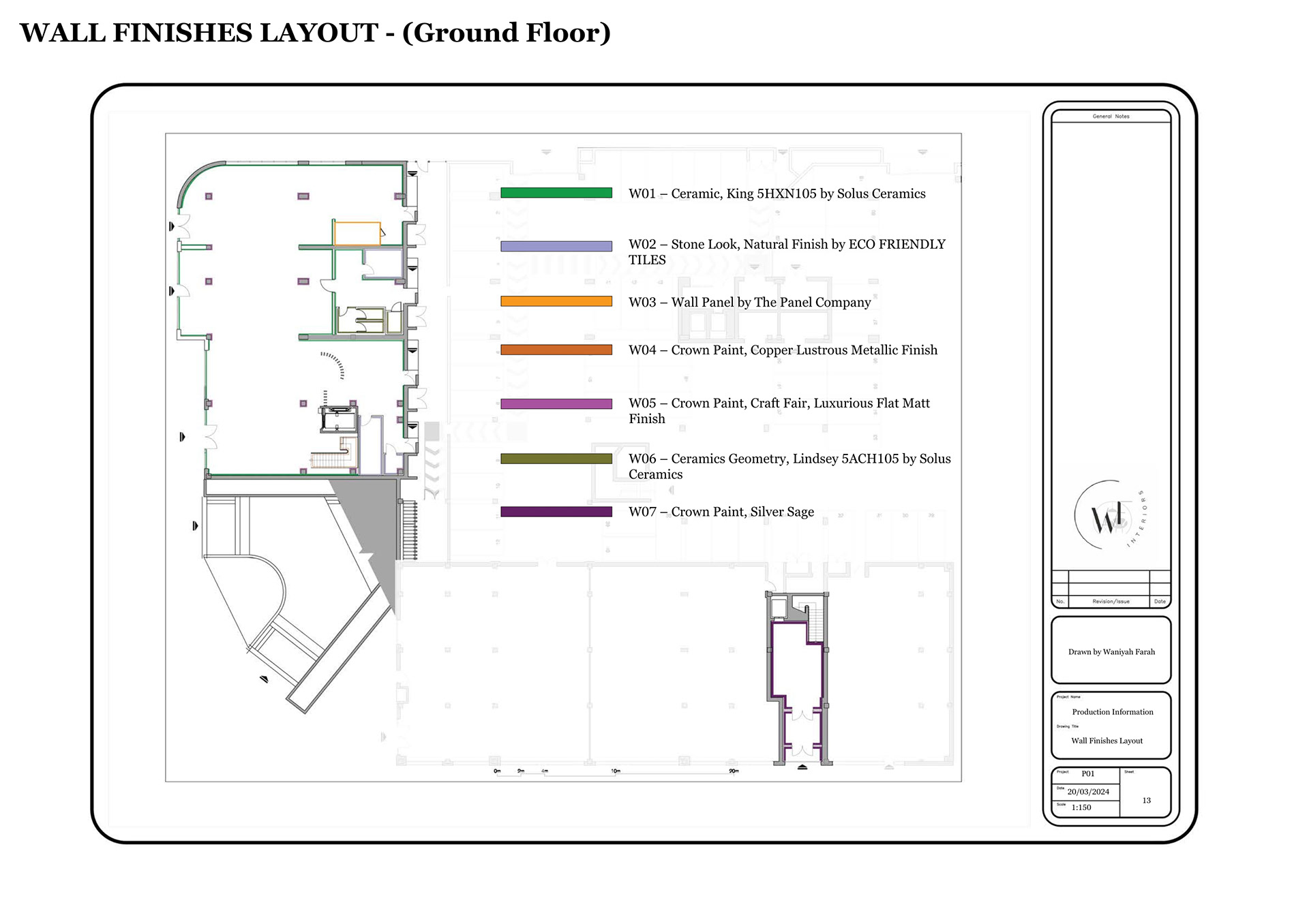

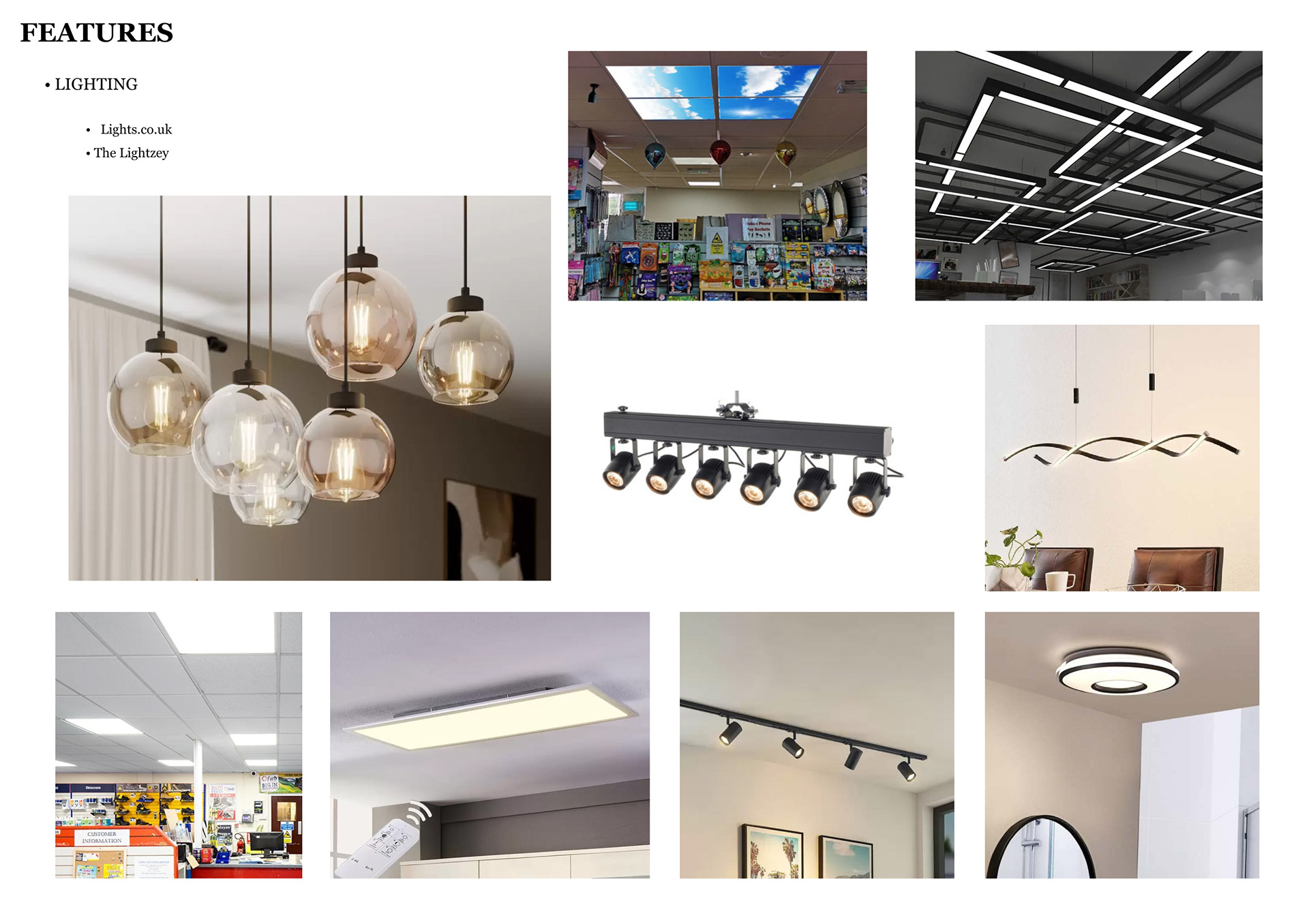

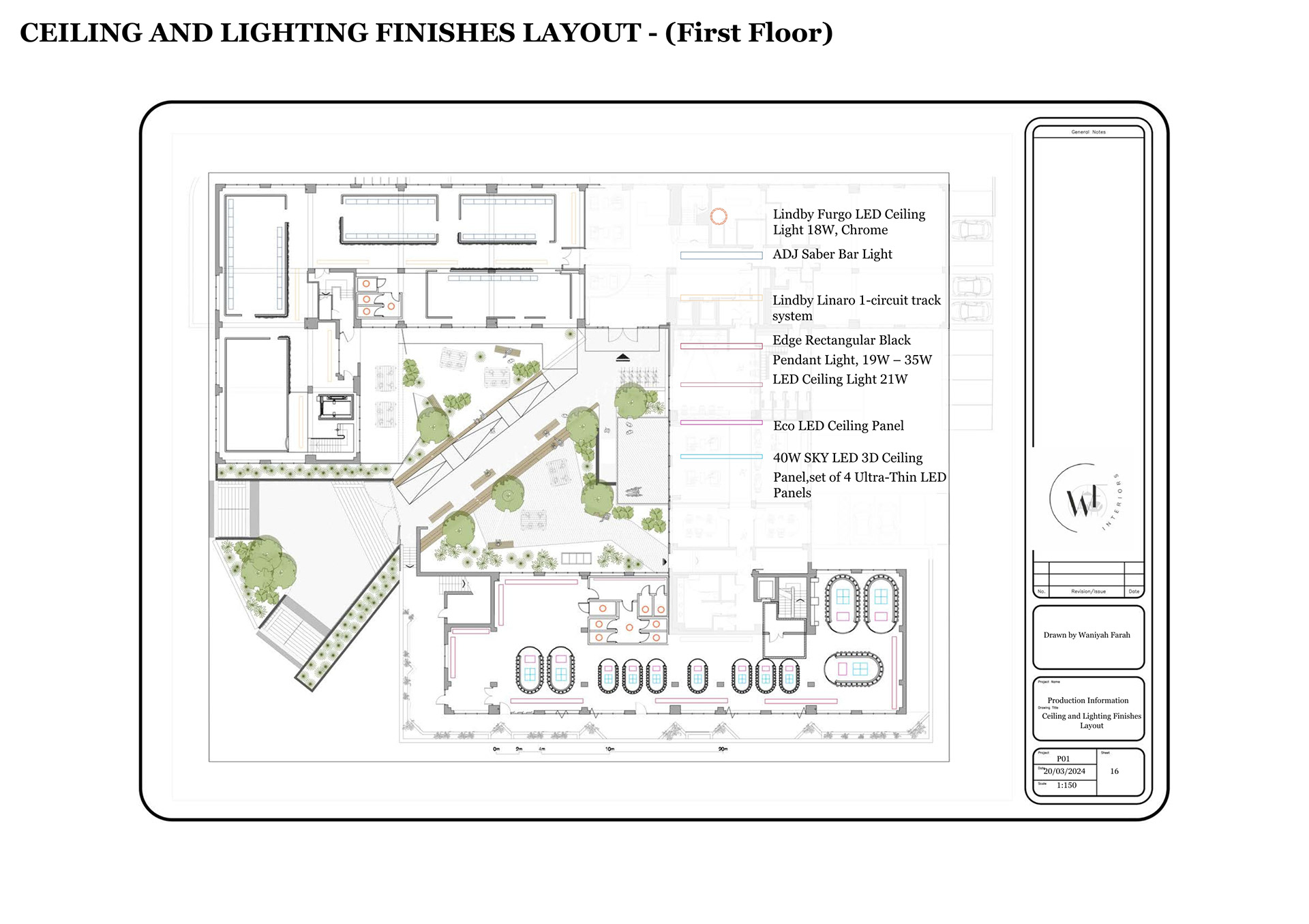

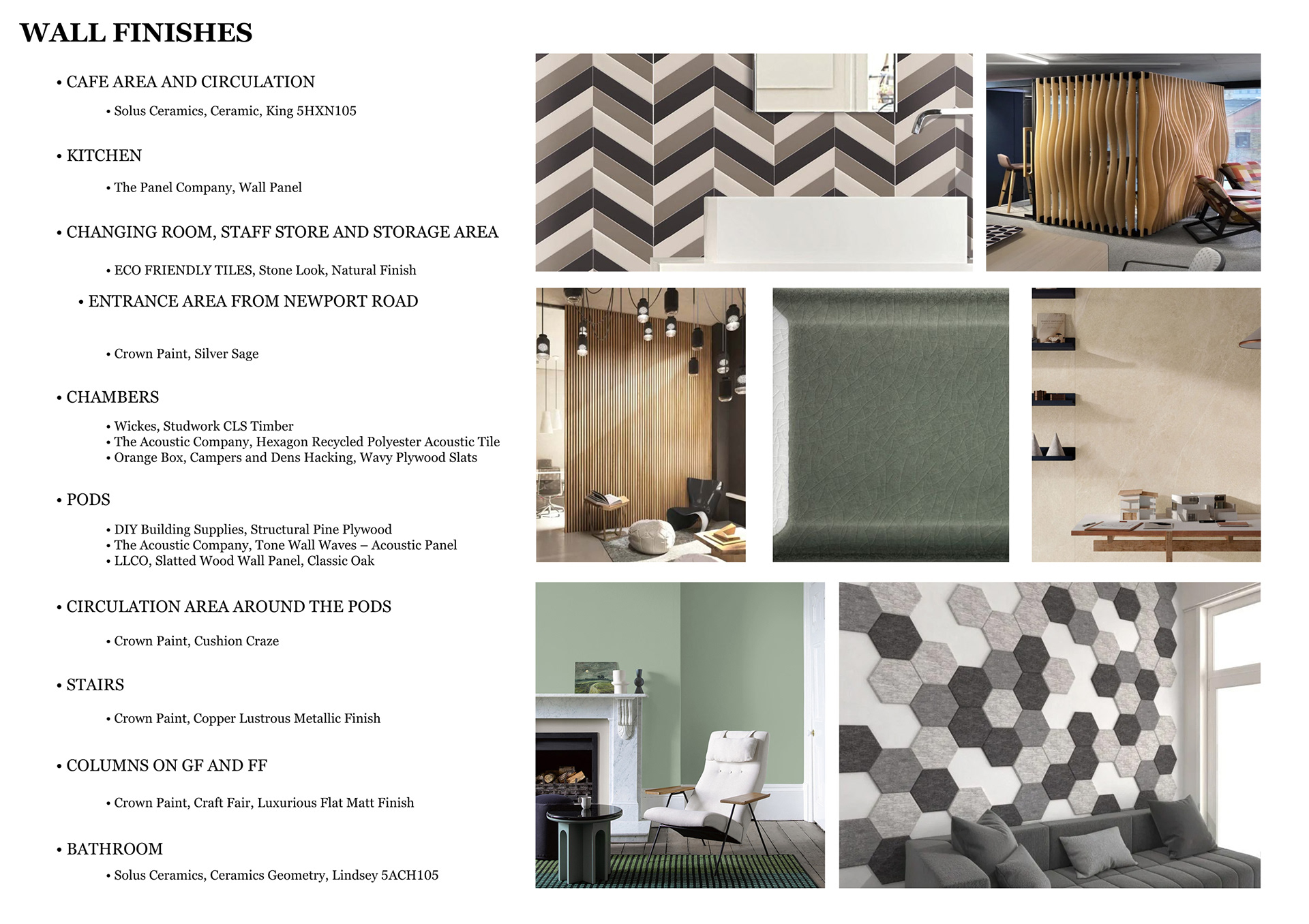

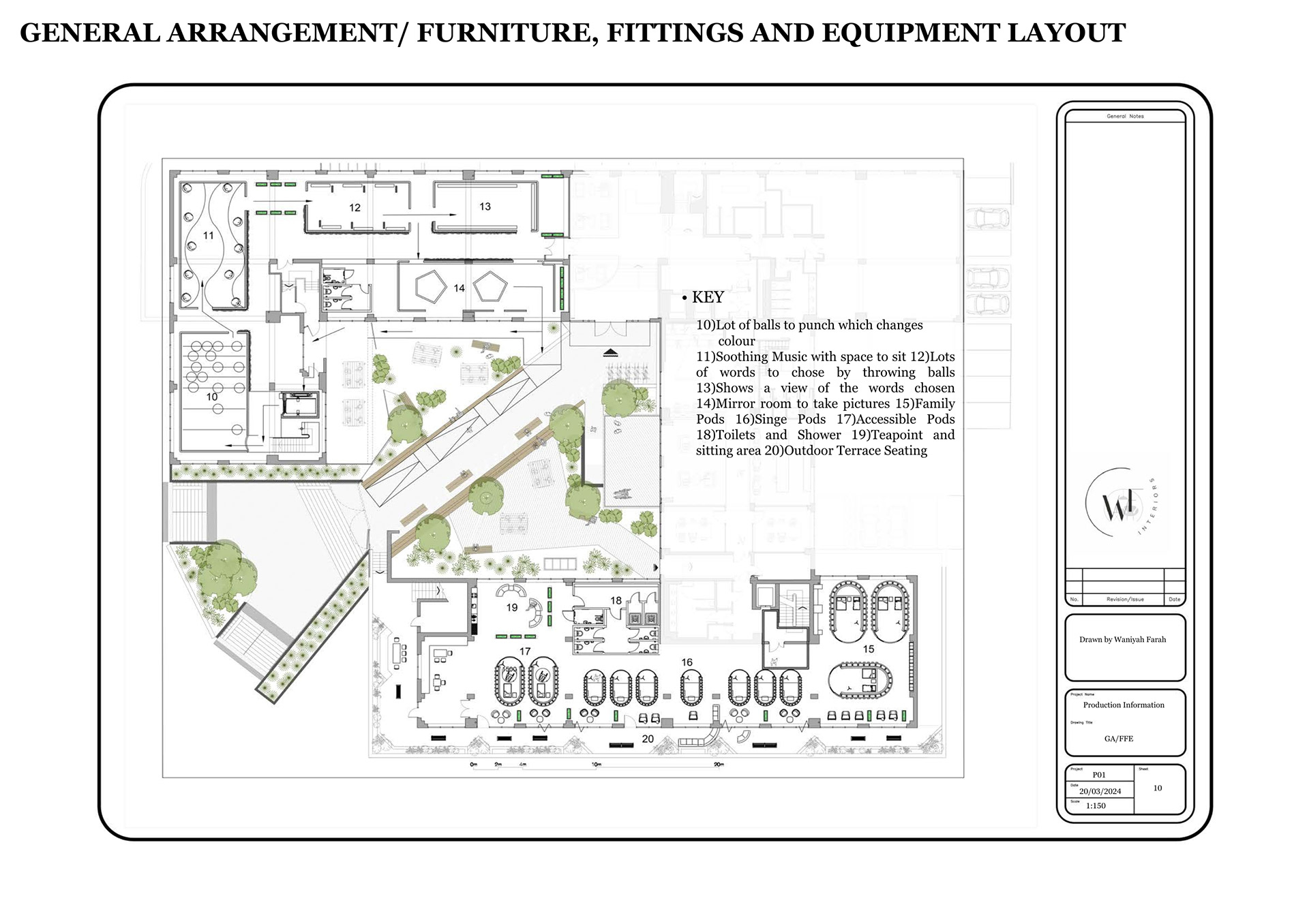

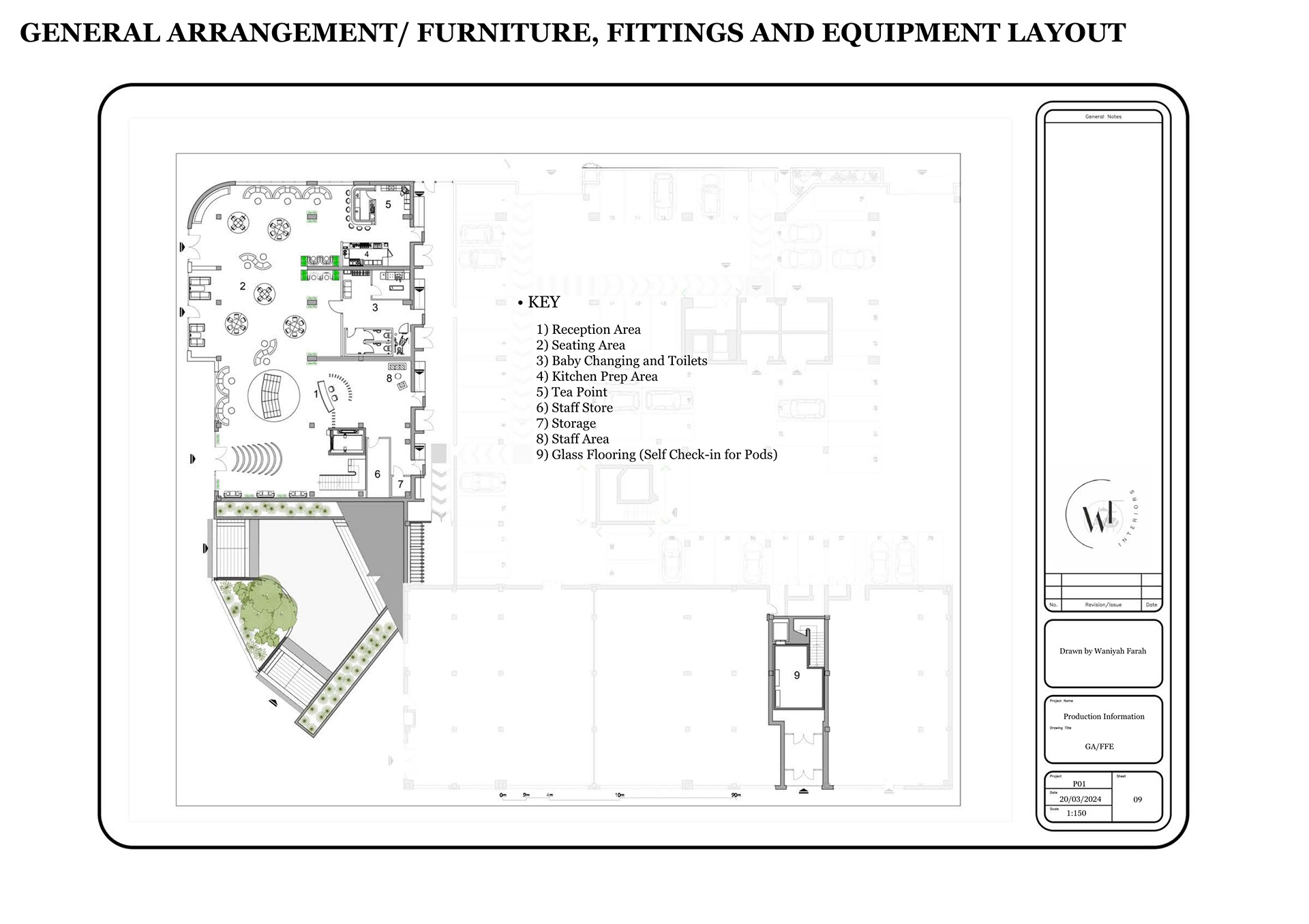

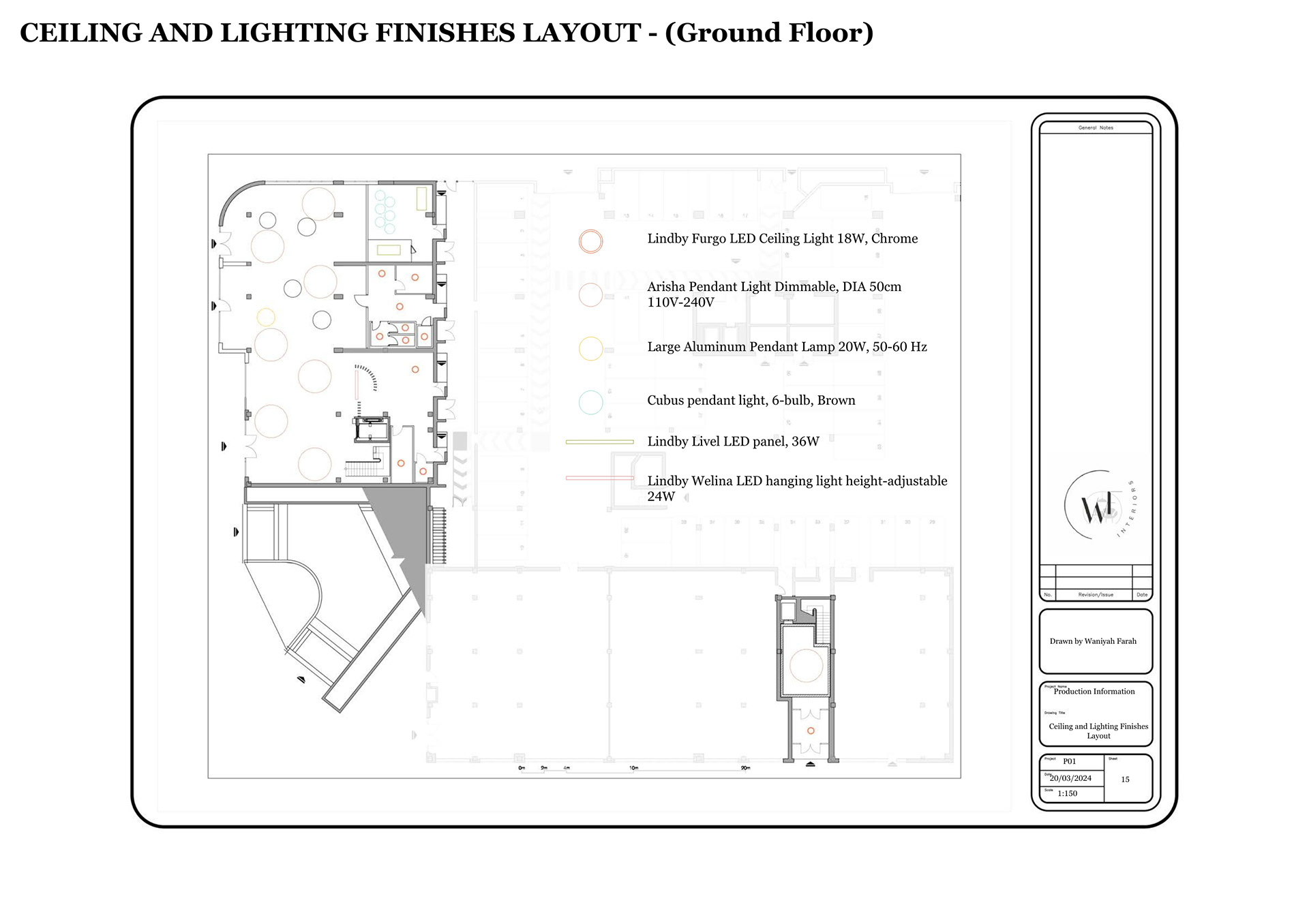

This included developing floor plans, finishes schedules, lighting and furniture layouts,

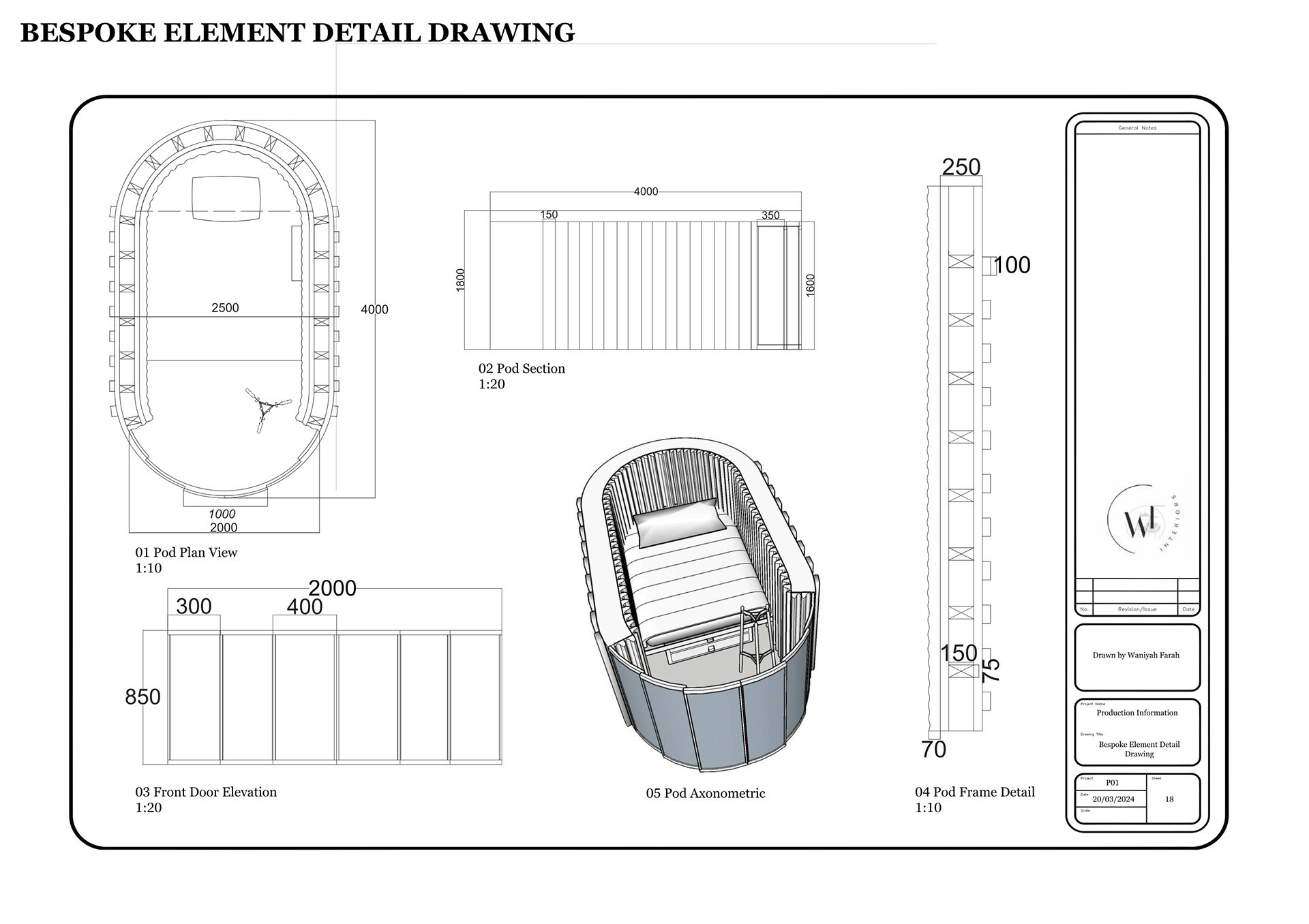

and bespoke joinery details that balance aesthetics with practical requirements.

Outcome

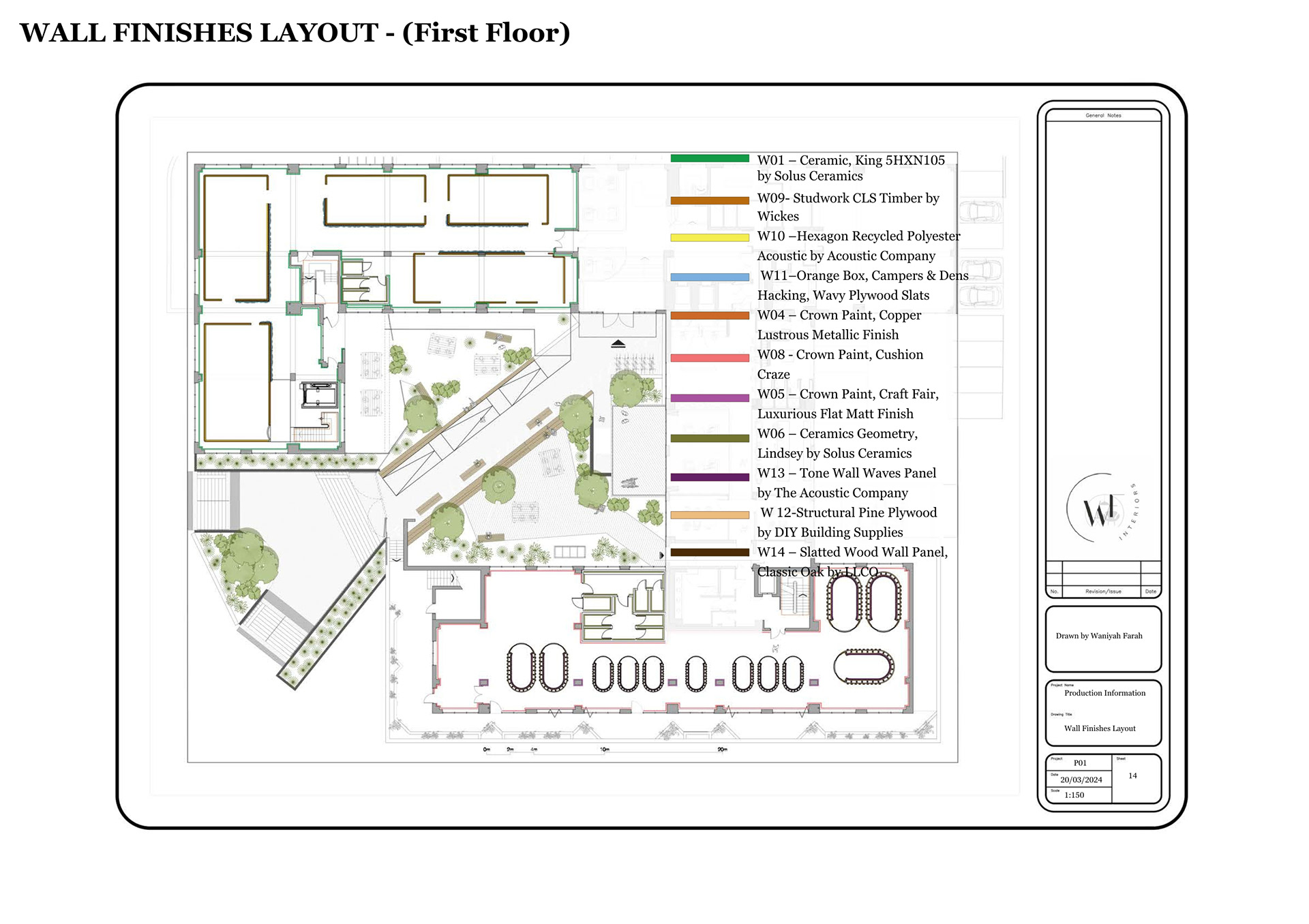

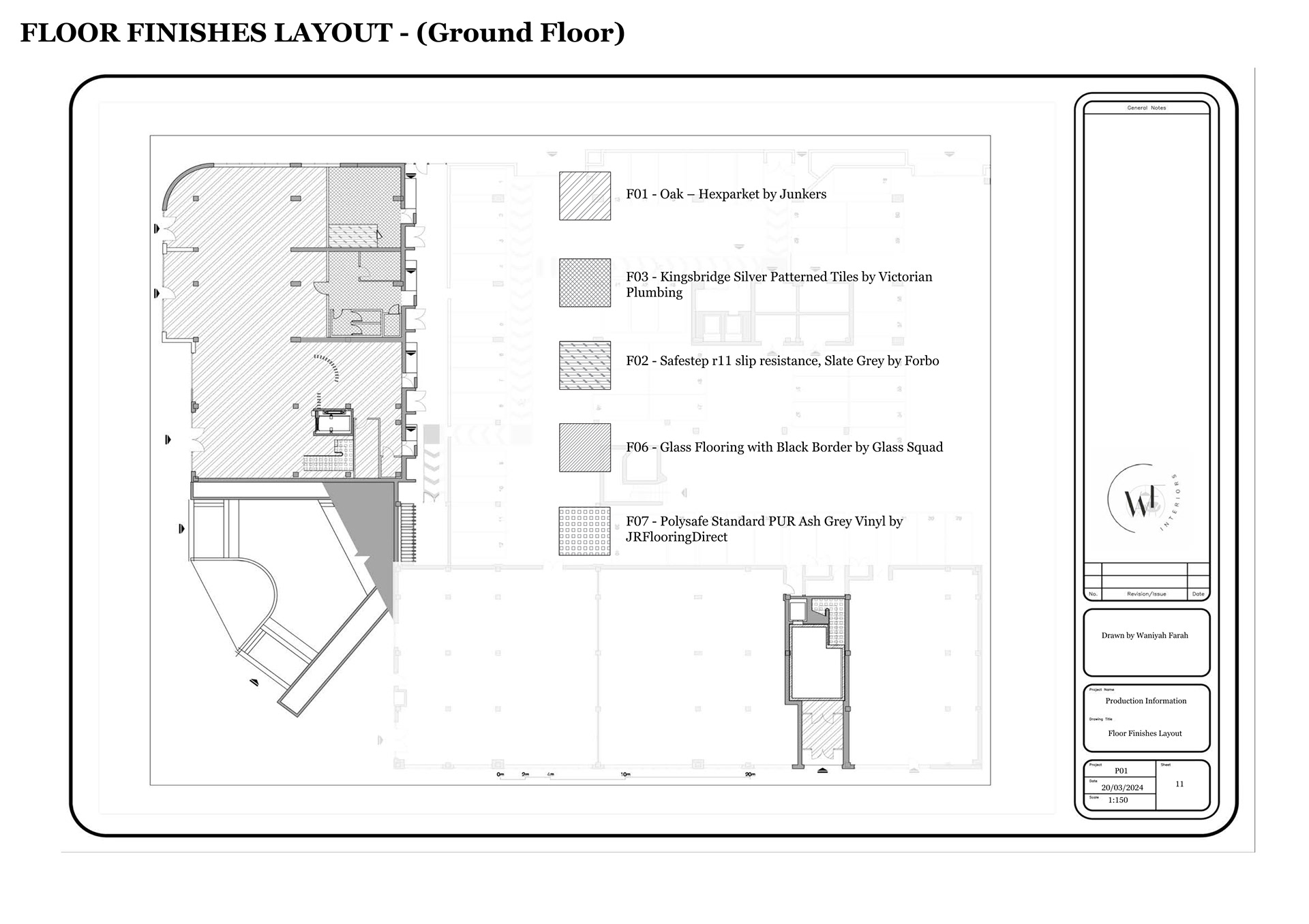

A coordinated technical drawing package featuring floor, wall and ceiling finishes, lighting and furniture layouts, material specifications and bespoke detailing. The documentation demonstrates the integration of creative design with technical precision and practical considerations.

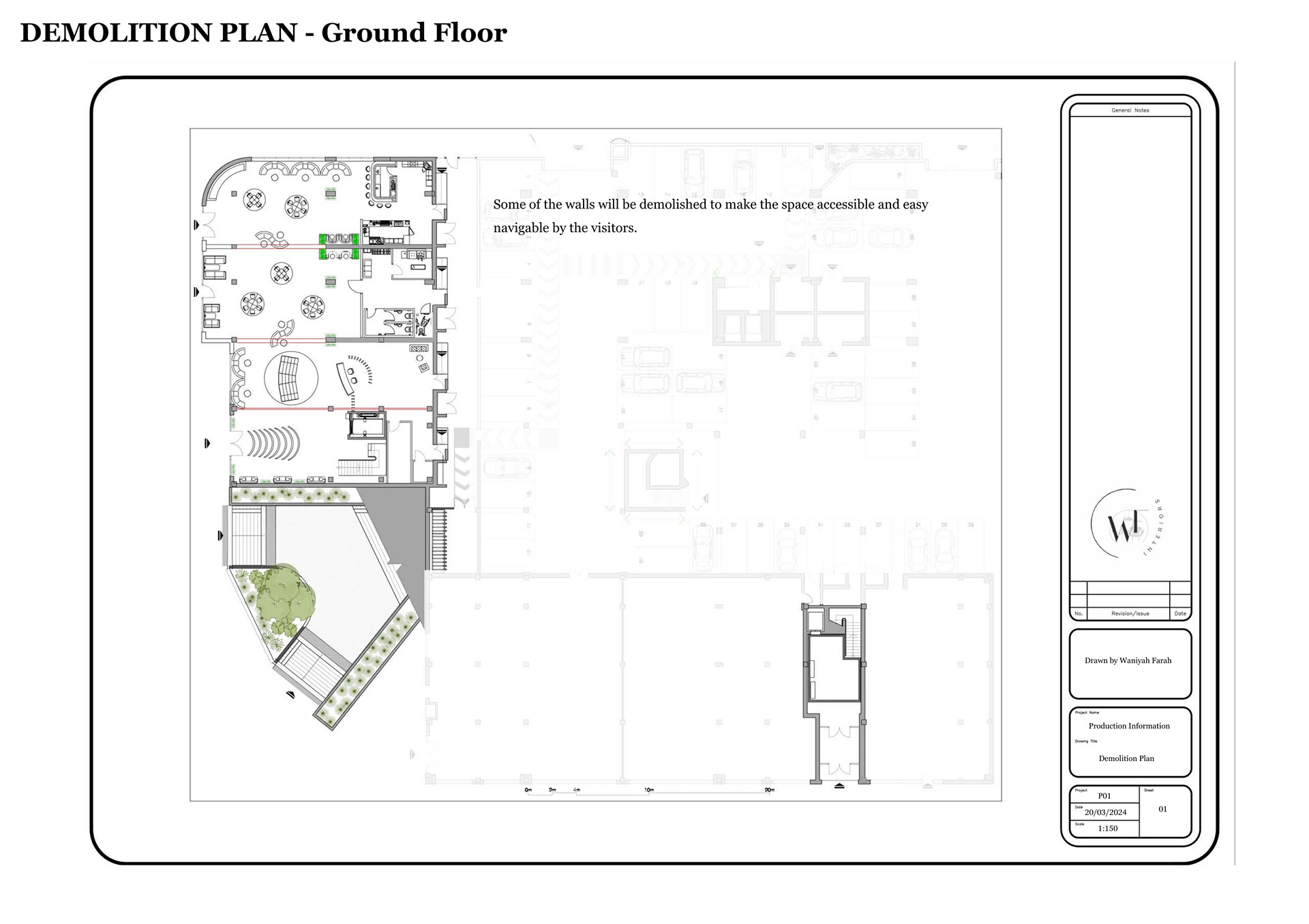

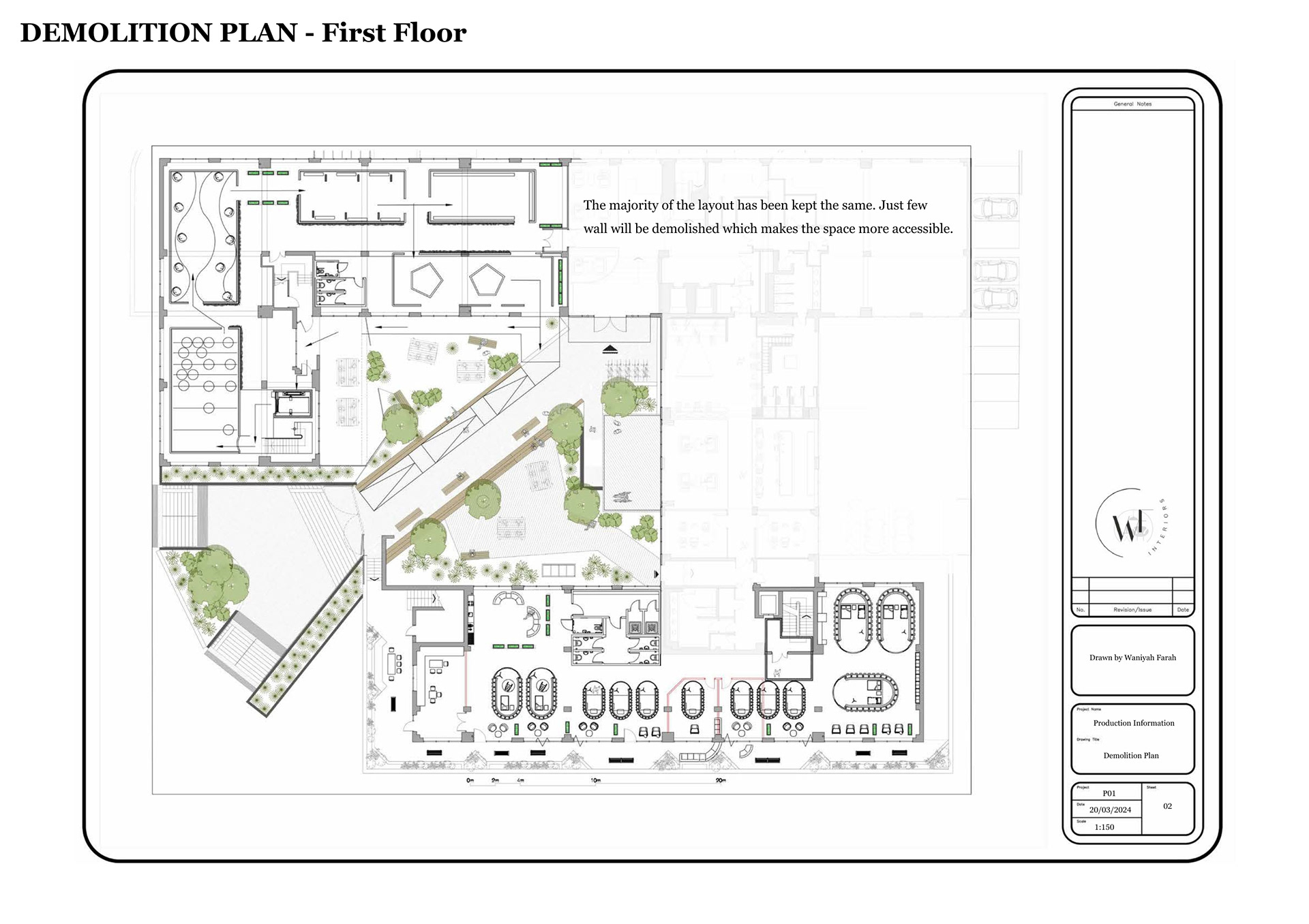

EXISTING CONDITIONS & DEMOLITION
Site Assessment · Proposed Alterations
